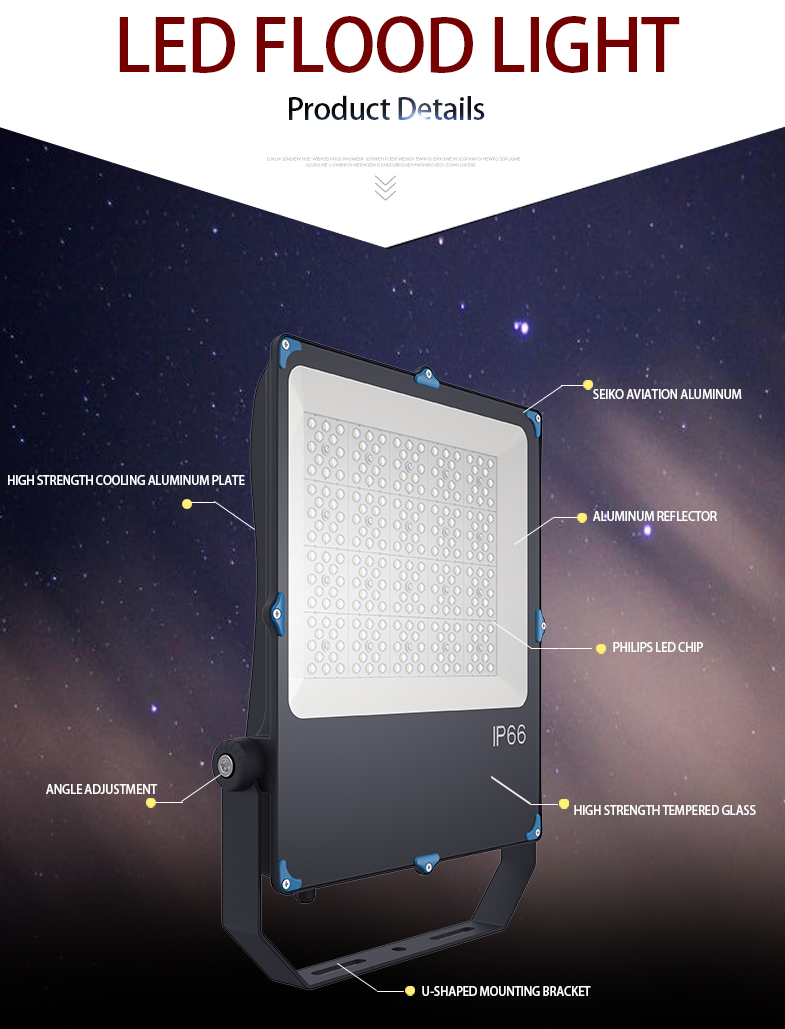

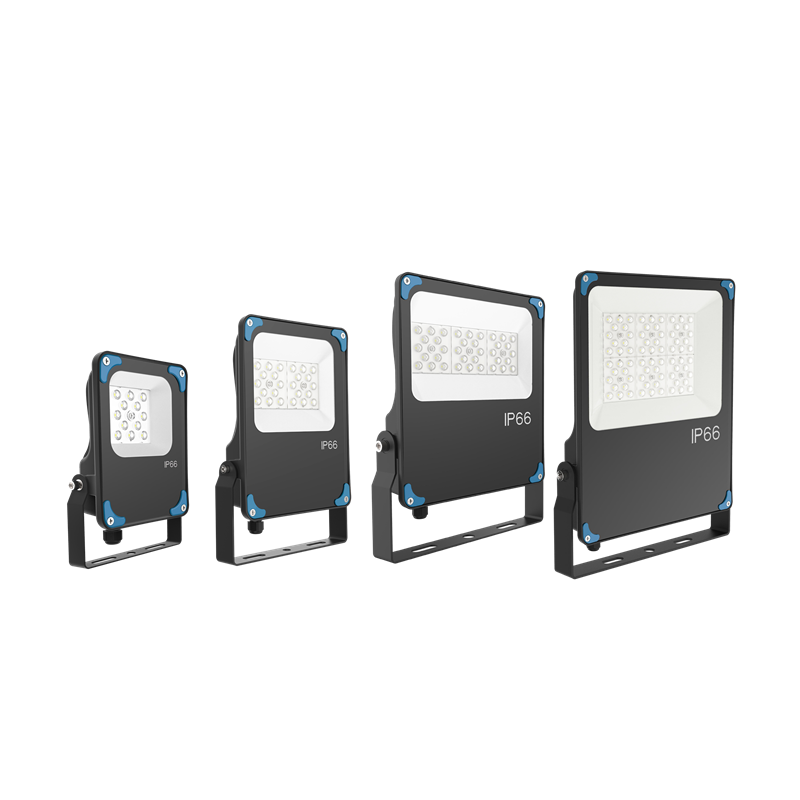

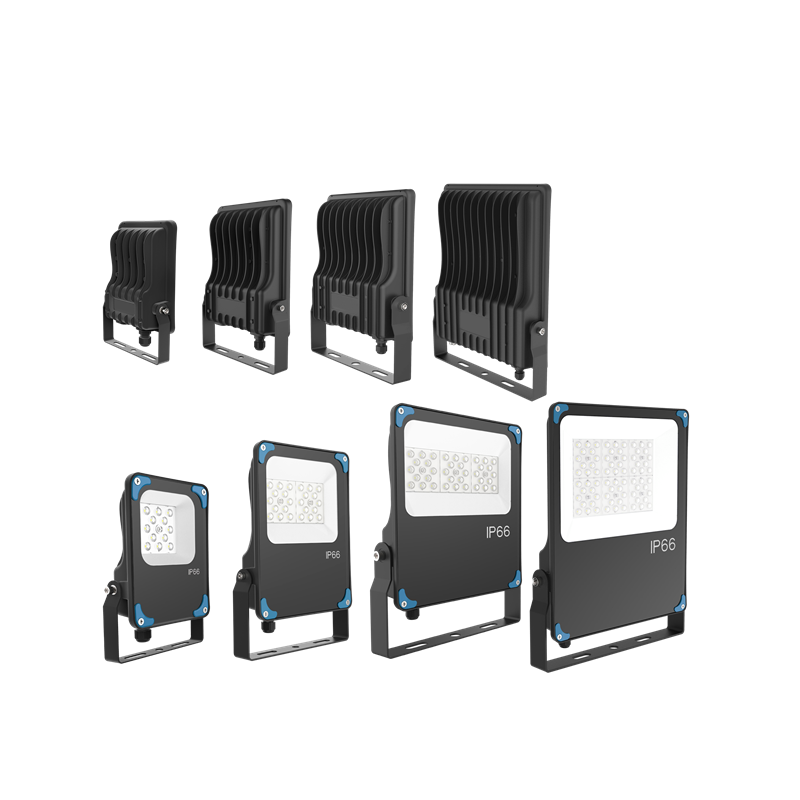

S3 Series Flood Light

① 120lm/w, 140lm/w or 160lm/w high efficiency solution

② 9 Beam Angles design 7°/15°/ 30°/ 60°/ 90°/ 120° / 70*150° / 80*155 ° / 85*155°

③ IP66 Waterproof

④ 5 Years warranty

⑤ ETL CE FCC SAA Certification

⑥ High strength aluminum alloy

Download Datasheet

Inquiry

Parameters

①

120lm/w, 140lm/w or 160lm/w high efficiency solution

②

9 Beam Angles design 7°/15°/ 30°/ 60°/ 90°/ 120° / 70*150° / 80*155 ° / 85*155°

③

IP66 Waterproof

④

5 Years warranty

⑤

ETL CE FCC SAA Certification

⑥

High strength aluminum alloy

I know

Detail

Model	Power	Output voltage	Power factor	Color rendering index	Beam angle	Luminous flux
CRF-S3-30	30W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-50	50W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-100	100W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-150	150W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-200	200W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-300	300W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
CRF-S3-400	400W	100-277VAC / 277-480VAC / 50/60Hz	≥0.95	≥80	15°/30°/60°/90°/120°	140lm/W
