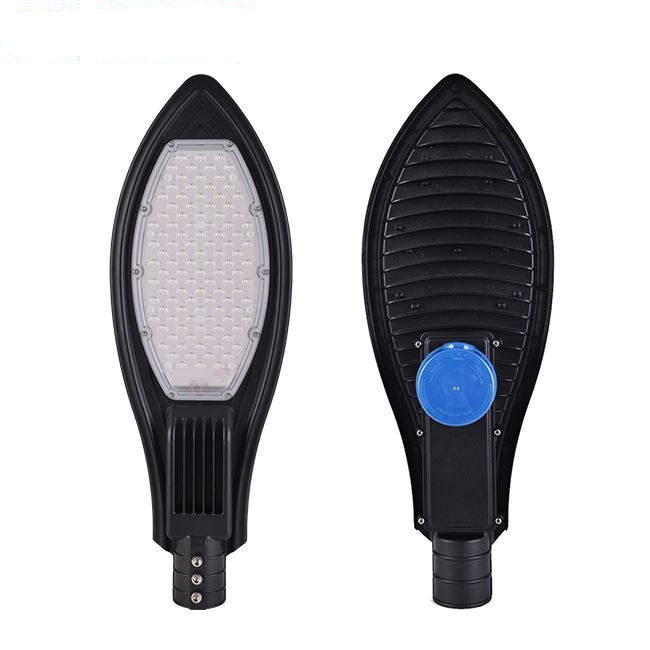

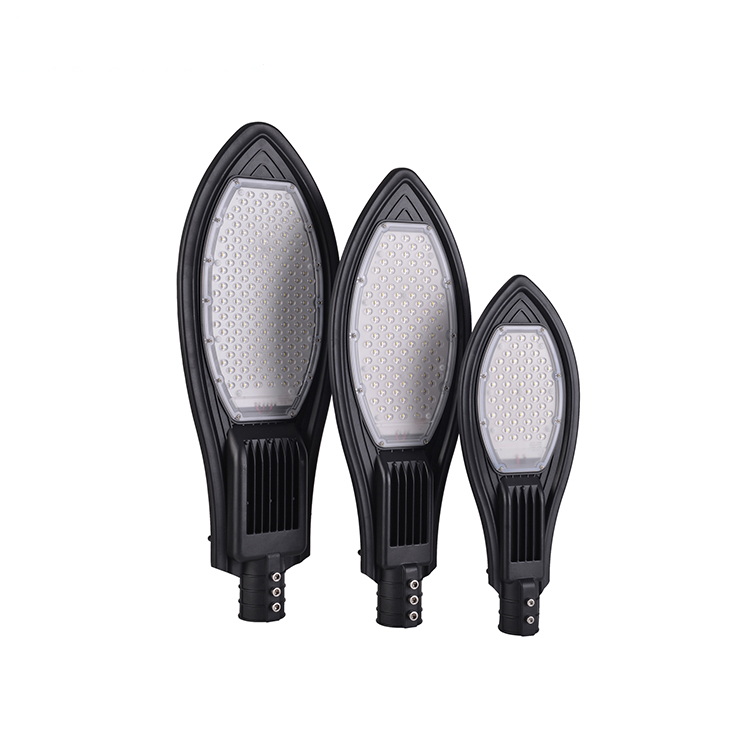

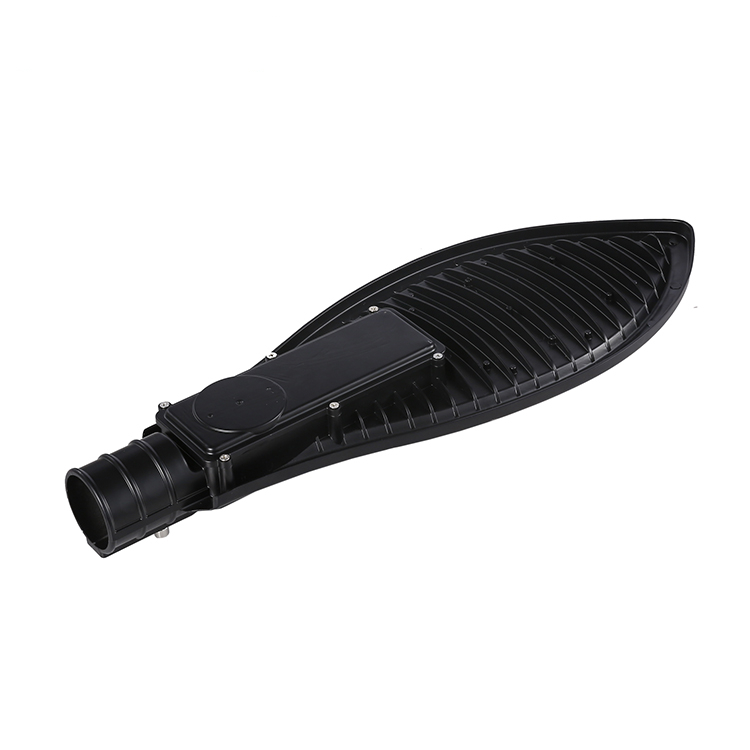

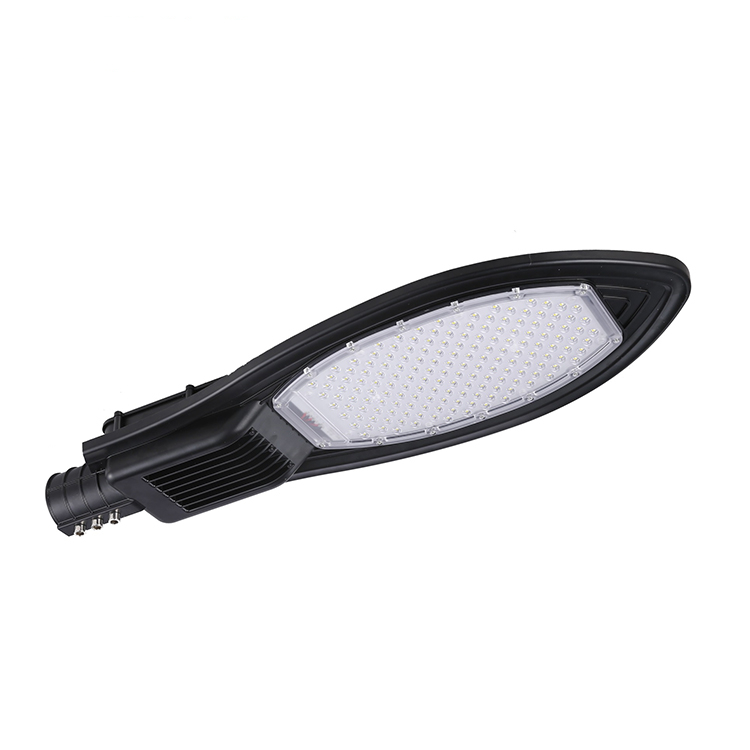

YZ Series Street Light

1-10v ,PWM,DALI Dimmable available
PF>0.95
IP66 Waterproof
120-170lm/W Option
CE/CB/ENEC/RoHS/ETL
High strength aluminum alloy
5 years warranty
Photocell led road luminaires,tool-free led street lamp;
Download Datasheet
Inquiry
Detail

20-250W LED Street light


Model
YZ-250
Lamp Power
30W
50W
60W
100W
120W
150W
200W
250W
LED Qty
30pcs
60pcs
120pcs
165pcs
200pcs
250pcs
Size(mm)
445x155x66
550x200x75
700x245x100
770x280x100
Pole
Φ50mm
Φ50mm
Φ60mm
Φ60mm
Material
Die-cast Aluminium+PC Lens, Lens shine angle: 70° X 140° (75° X160°)
Lamp Flux
90-100LM/1W; 100-120LM/1W; 130-140LM/1W
PF
>0.9
LED Color
3000-3500K; 4000-4500K; 5000-5500K; 6000-6500K
IP Grade
IP65
CRI
Ra>70
Life Time
50000H
SPD
4KV-6KV-10KV
Voltage
AC85-305V
Body Color
Black or Grey or White; The product can choose to install Photocell Sensor
Certificate
BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR

YZ Series street  light (11).jpgYZ Series street  light (17).jpgYZ Series street  light (16).jpgYZ Series street  light (18).jpg
