XONE Series Solar Street Light

share
WeChat
copy Link
Facebook
Twitter
LinkedIn
Ⅰ Material Aluminum
Ⅱ Battery LiFePO4 Lithium
Ⅲ Solar Panel Monocrystalline
Ⅳ Working Temperature -20-60℃
Ⅴ IP65 waterproof
Ⅵ Philips LED Chip
Ⅶ Ligh Control+Time Sensor
Ⅷ 2 Years warranty
Download Datasheet
Inquiry
Detail



Model
Power
LiFePo4 Battery
Solar panel power
Solar panel size
Lumen
/
SS-YH3-20
20W
3.2V 15AH
6V 15W
350*350mm
900 lm
/
SS-YH3-30
30W
3.2V 20AH
6V 20W
450*350mm
1200 lm
/
SS-YH3-40
40W
3.2V 25AH
6V 25W
530*350mm
1500 lm
/
SS-YH3-50
50W
3.2V 30AH
6V 30W
630*350mm
1800 lm
/
SS-YH3-60
60W
3.2V 40AH
6V 40W
670*420mm
2250 lm
/


Solar panels can be customized wattage on request
Model
Power
LiFePo4 Battery
Solar panel power
Solar panel size
Lumen
CR-XONE-20
20W
3.2V 15AH
6V 15W
350*350mm
900 lm
CR-XONE-30
30W
3.2V 20AH
6V 20W
450*350mm
1200 lm
CR-XONE-40
40W
3.2V 25AH
6V 25W
530*350mm
1500 lm
CR-XONE-50
50W
3.2V 30AH
6V 30W
630*350mm
1800 lm
CR-XONE-60
60W
3.2V 40AH
6V 40W
670*420mm
2250 lm
Lights specification
Power
20W / 30W   / 40W / 50W / 60W
Model
SS-YH3-20 / 30 / 40 / 50 / 60W
CRI
>80 Ra
Solar panel Max power
6V 30-150W
CCT (K)
2700 K-6500 K
Solar panel Life time
25 years
Lamps material
Aluminium alloy
Battery Type
LiFePo4

Certificate
CE / ROHS / IP65
LED Max power
60pcs 3030
40pcs 5050 optional
Warranty period
3 years
Led chip
1734   (SMD 3030 / 5050)
Mounting height(m)
3-6 m
Lumen (LM)
100 lm/w
Space between light
100-200 square M
LED Life time
50000 hours
Working time
3-4 rainy days
Beam Angle
70°* 140°
Solar charge controller
6V 10A
Charge time(by sun)
5-6 hours
(with enough strong shine)
Fitting size
(street light head)
500*210*85 mm
Working TEMP( ℃ )
-10~+50℃
Charge / Storage
0 - 45℃
Working mode
(Light control+Time control)
Time Control: 4 hours with 100% brightness+2 hours with 50% brightness+3 hours with 20% brightness.
Light Control: The lamp attomatically turn on after sunset ,and off when sunrise.

Click here to got the best price !!!

Product Description

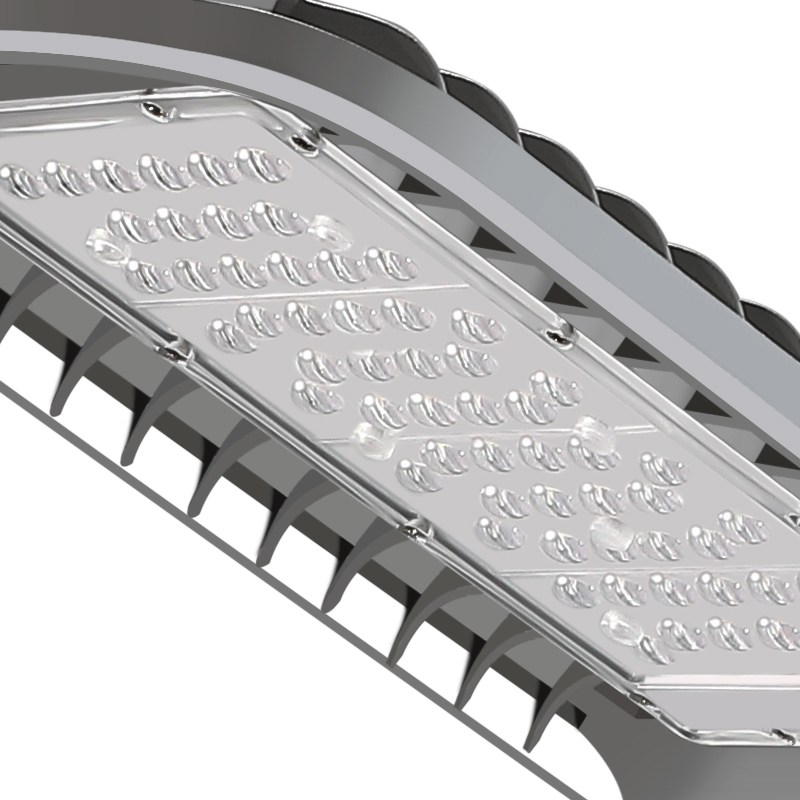

SMD 3030 / 5050 LEDs

High luminous
5W 5050 / 1W 3030 LEDs
100LM/W
1734 chip
Ra > 80
CCT:2700K-6500K

Solar panel

20%   high efficiency solar transfering efficiency

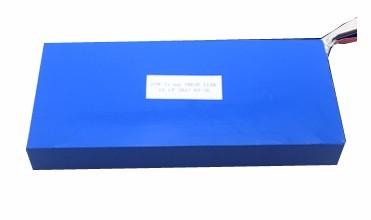

High capacity LiFePo4 battery


Working time:3-4 rainy days

Charge time(by sun) : 5-6hours

(with enough strong shine)


Smart solar charge controller


6V 15A

93% high charging efficiency

Over charge and over discharge protection

Constant current output

Programmed and smart controller
