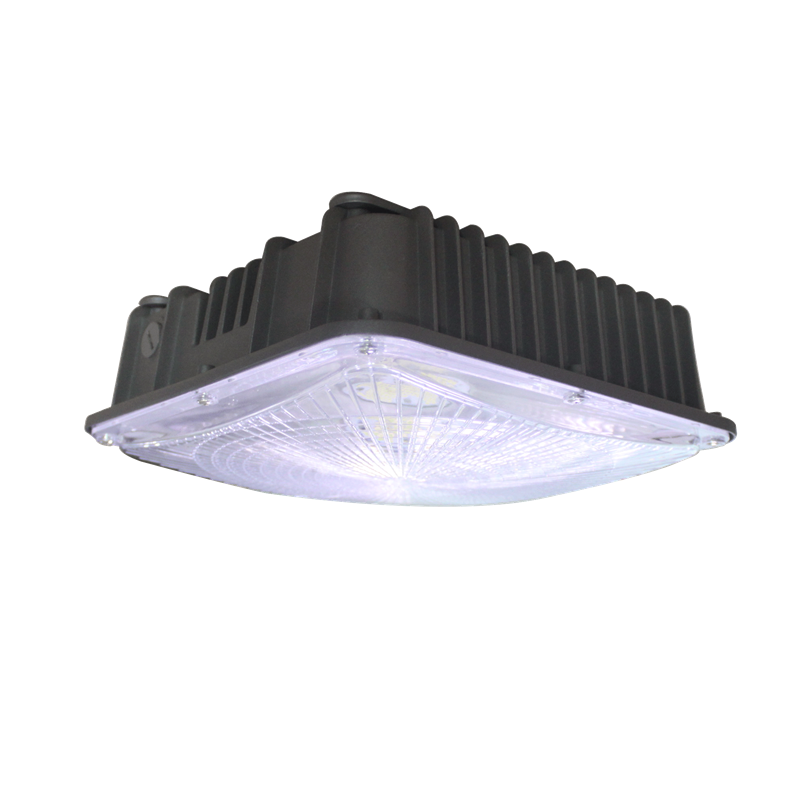

CPHD-B series canopy light

① 1-10v ,PWM,DALI Dimmable available

② BLE MESH,Zigbee samrt control ，Microwave Motion sensor，photosensor ，optional

③ Designed to last at least 50,000 hours；

④ 120-170lm/W Option

⑤ 5-10 years warranty

⑥ ETL CE FCC certification

⑦ 5-10 years warranty

Download Datasheet

Inquiry

Parameters

①

1-10v ,PWM,DALI Dimmable available

②

BLE MESH,Zigbee samrt control ，Microwave Motion sensor，photosensor ，optional

③

Designed to last at least 50,000 hours；

④

120-170lm/W Option

⑤

5-10 years warranty

⑥

ETL CE FCC certification

⑦

5-10 years warranty

I know

Detail

SPECIFICATIONS

Model	CPHD-40	CPHD-60	CPHD-80
Wattage	40W	60W	80W
LED	3030	3030	3030
Voltage	AC100-277V(50Hz-60Hz)	AC100-277V(50Hz-60Hz)	AC100-277V(50Hz-60Hz)
Color Temp	3000K-4000K-5000K	3000K-4000K-5000K	3000K-4000K-5000K
Lumens(Range)	3200-3600LM	4800-5400LM	6400-7200LM

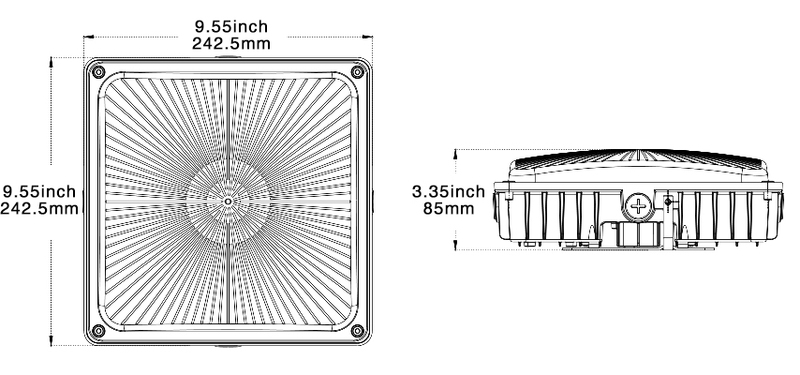

Size	L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch	L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch	L242.5xW242.5xH85MM L9.55xW9.55xH3.35inch
IP Rate	IP65	IP65	IP65

*With Microwave Motion Sensor

Zhongshan Factory wet location Luminaire Gas Station LED Canopy Light

Reference Guide

Advantage & Features

BUY 40 WATT LED

(REPLACES EXISTING 100 WATT MH)

3200 - 3600 Lumens Good for: Storage Areas,

Small garages, Small Warehouses

BUY 60 WATT LED

(REPLACES EXISTING 170 WATT MH)

4800 - 5400 Lumens Good For: Warehouses,

Manufacturing Facilities, Large Garages or Hotels

BUY 80 WATT LED

(REPLACES EXISTING 250 WATT MH)

6400 - 7200 Lumens Good For: Large Warehouses,

Manufacturing Facilities

• Long lifespan - 50,000hrs, 5 years warranty

• High efficiency - Super bright 110Lm/W

• Save energy and money, reduce your electronic bill by up to 70% ~ 80%.

• Easy and fast installation, contractor-friendly design. Wiring is standard 3 wires for fast change over.

• IP65 waterproof - for indoor outdoor applications

• High purity die casting aluminum body - largest heat sink area

• Slim size superior die-cast aluminum shell ,wet location available

• Our canpy light is special designed for North American Market, the best choose for you to replacing 250-300W HPS/HID bulb.

APPLICATION SITUATIONS

Warehouse, Security, Loading Docks, Gas Stations, Petrol Refineries, Industrial Complexes,

Parking Garage, Car Wash, Automotive Mechanic Shops, and Much More!

Zhongshan Factory wet location Luminaire Gas Station LED Canopy Light

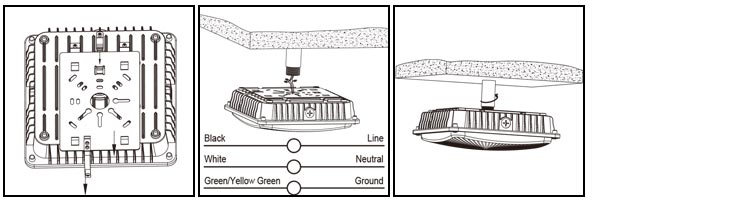

LED CANOPY LIGHTs INSTALLATION INSTRUCTION

SURACE MOUNT WITH J-BOX

Zhongshan Factory wet location Luminaire Gas Station LED Canopy Light

1. Loosen the screw on side of the light,

removing the bracket from canopy light

by pulling it out slightly, just leaving the

ring on bracket.

2. Fix the bracket on J-box, and put the

wire through the central hole for wiring.

3. Attach the canopy light with bracket by

putting the ring on clips again. Connect

the Black wire for line,White for neutral,

yellow green for ground.

4. Slide the canopy lights into bracket, and secure the screw on side of the light to prevent the light from sliding out from the bracket.Installstion done.

PENDENT WITH 3/4 INCH CONDUIT

Zhongshan Factory wet location Luminaire Gas Station LED Canopy Light
