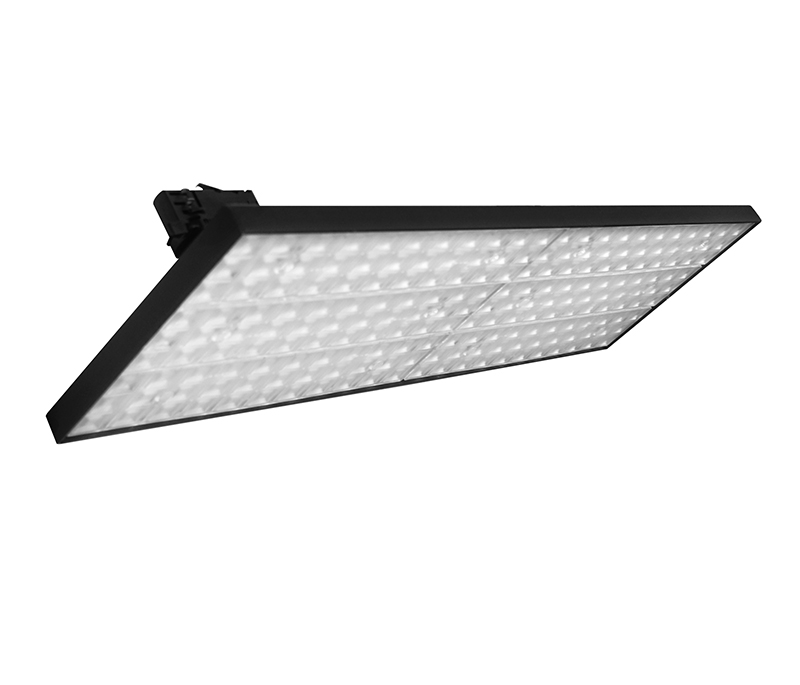

50W Super Value Led Track Panel Light

Die-casting Aluminum
PF>0.95
Flicker Free
THD<15
TUV/SAA/CE/CB/ENEC/RoHS
5 years warranty
Download Datasheet
Inquiry
Parameters
Die-casting Aluminum
PF>0.95
Flicker Free
THD<15
TUV/SAA/CE/CB/ENEC/RoHS
5 years warranty
I know
Detail

General Information

Power 50W
Housing MaterialDie-casting Aluminum
Housing ColorBlack (9011 ) / White (9016)

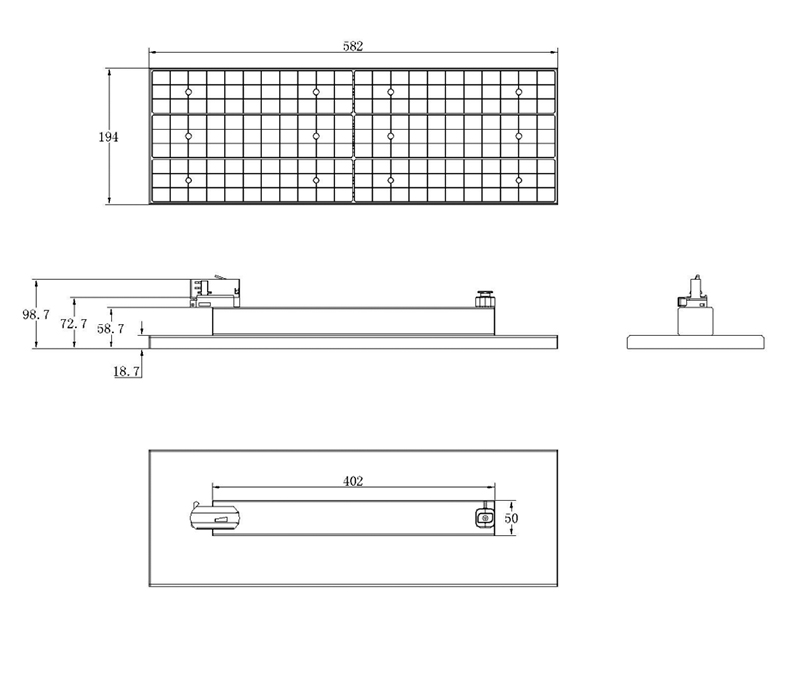

Housing Size18*194*580mm
Light SourceSMD2835
Light Source BrandPhilips/Osram
CCT3000/4000/5000K
Driver BrandTridonic/Osram/Philips/Lifud/Boke
Optics TypeLens
Beam Angle60/90
UGR19
Warranty5years
Track Adapter 2/3/4/6wires
IP ClasssIP20


Lighting Feature

PowerCCT (Nom)Color Rendering IndexSDCMNOM Luminous Flux (Efficient )Light Decay (10000hs)
50W3000KCRI>80<35700Lm(114m/w)<3%
CRI>90<34900Lm(98lm/w)<3%
CRI>97<34350lm(87lm/w)<3%
4000KCRI>80<35850LM(117lm/w)<3%
CRI>90<34950lm(99lm/w)<3%
CRI>97<34500lm(90Lm/w)<3%


Operating and Electrical

Power 50W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS


Decription

Super quality 50w led track panel light for clothing store, library, shopping mall, supermarket. CRI80/90/97track panel light can meet different guests requires. Our track panel light choose Osram SMD LED chip and we can provide five years warranty. What's more we pass the CE/RHOS certification. Our products have been well received by many customers and are often used in engineering projects. Besides, our factory covers an area of 2000 square meters and we can produce ten million per mounth.

Temperature Test


Temperature


  • The testing is operated at 25℃

  • The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the   temperature drops 10℃

  • The highest withstand temperature of IC,MOS could be 120℃

  • The highest withstand temperature of led junction temperature is 150℃
